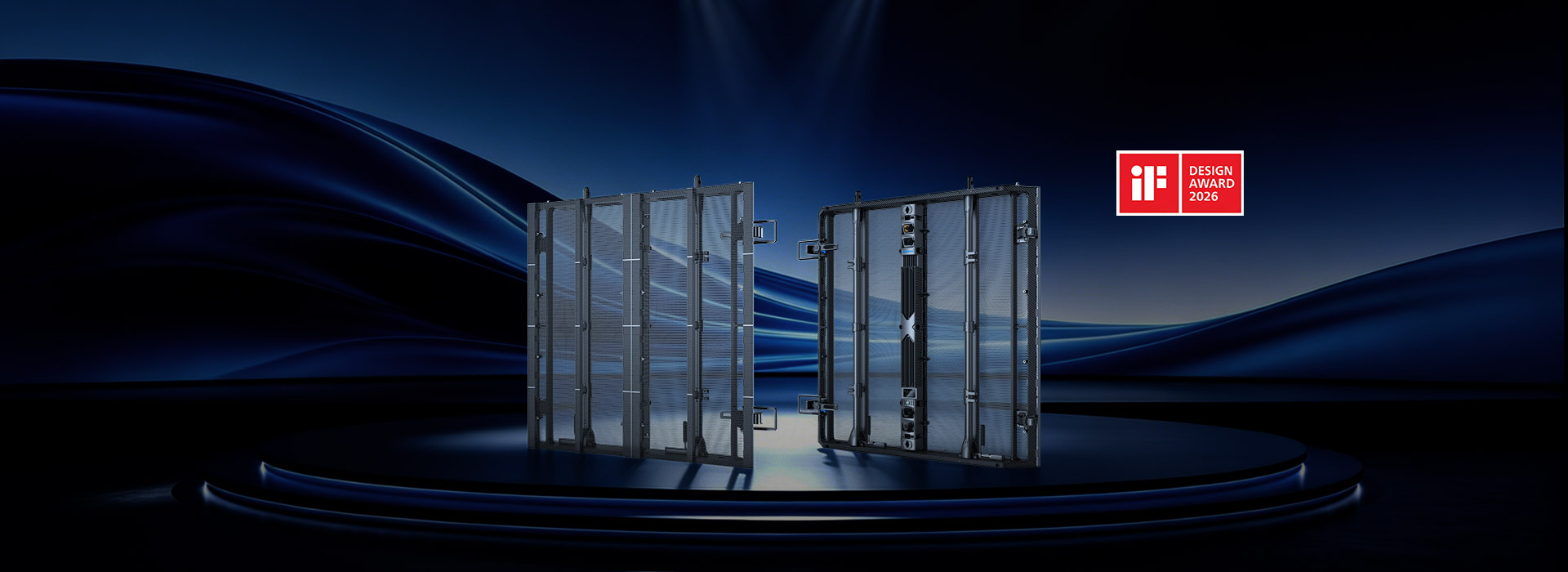

MAIR TRANSPARENT DISPLAY

Light · Transparent · Diverse · Flexible for Touring

The MAir series is a transparent LED display designed for large-scale touring stages. Lightweight, transparent, flexible with solid version and easy to install - it delivers a stable and reliable display solution for major events, empowering every creative idea with outstanding visual performance.

KEY FEATURES

High Transparency

Ultra-light weight

Fast Installation

Super Flexibility

Integrated Transport System

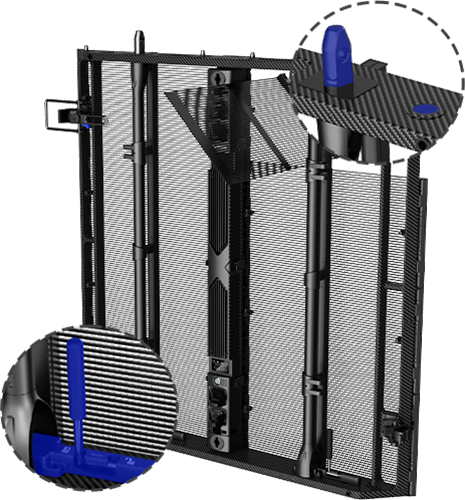

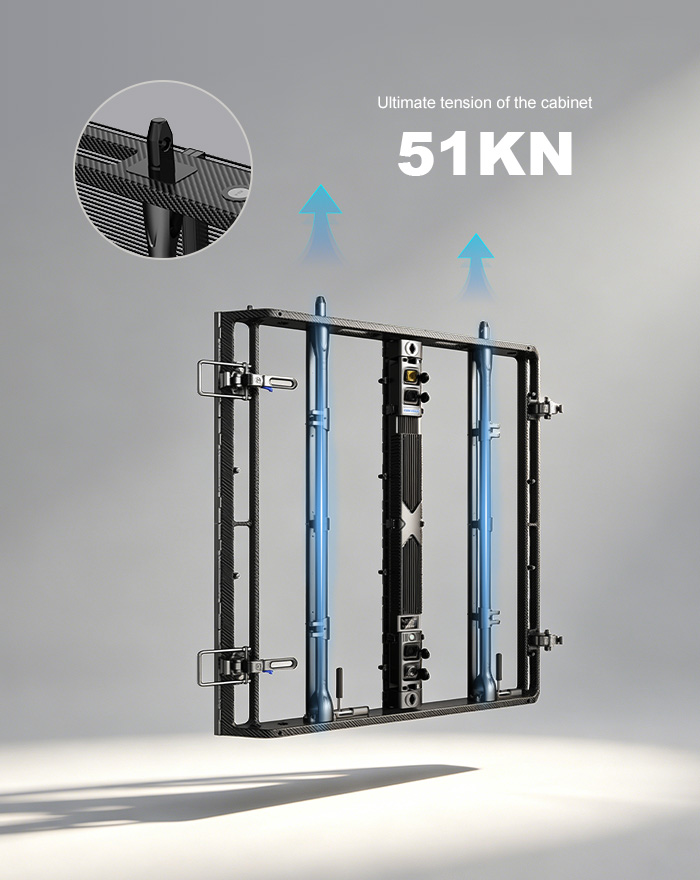

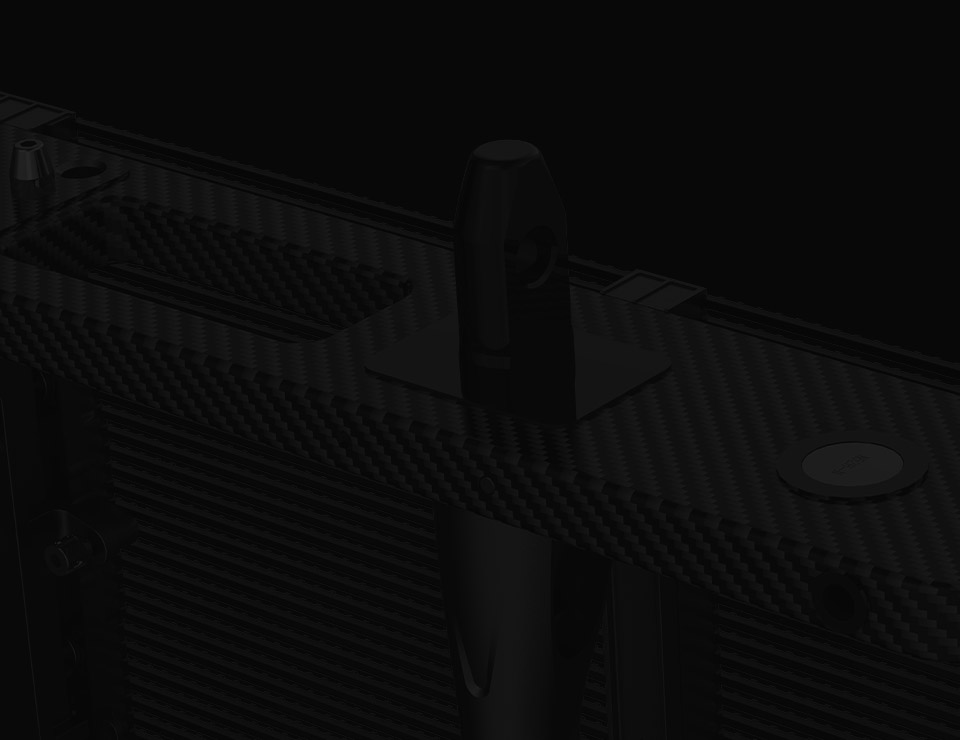

The Industry’s First Integrated Carbon Fiber Cabinet

MAir uses the industry’s first seamless, one-piece carbon fiber molded frame with central metal support rods, making it lightweight yet durable.

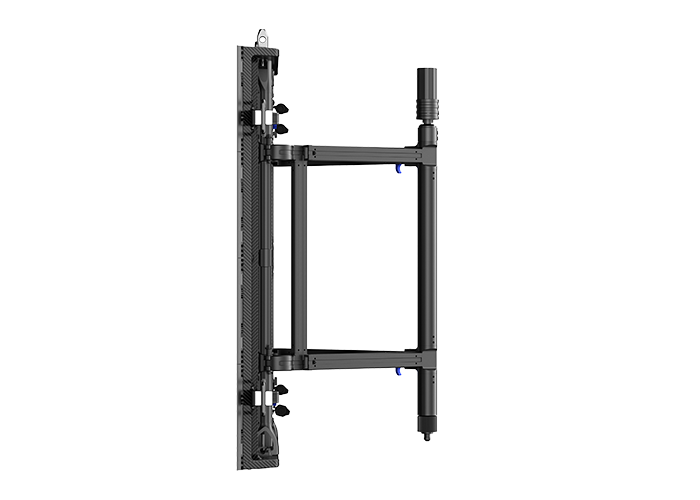

Resistant to Level 8 Strong Winds

Metal support rods with a wind-resistant frame, rated for up to 20 m/s wind speeds and 25 m hanging height.

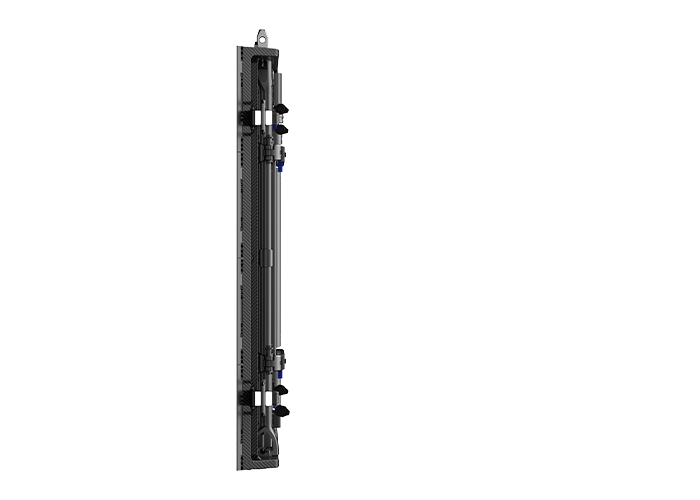

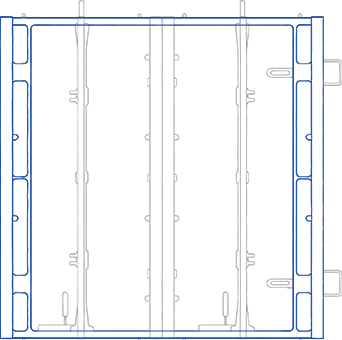

Folded: 115mm Unfolded: 502mm

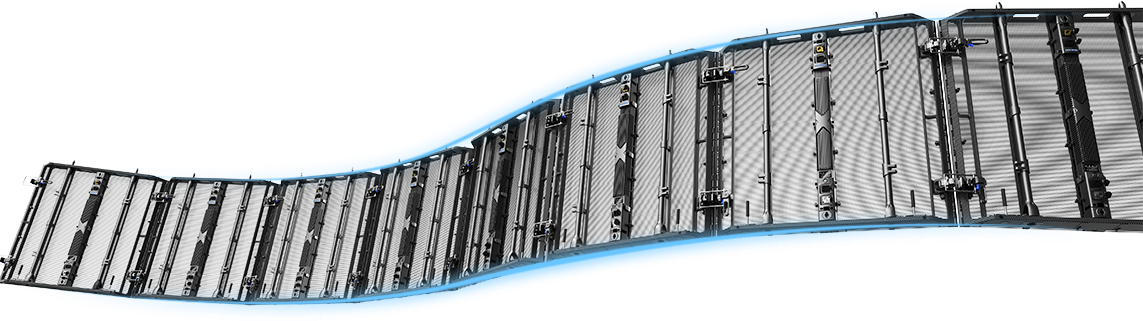

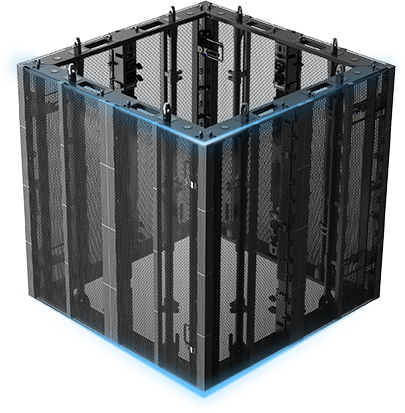

High Flexibility

Even as YES TECH’s largest 1000 × 1000 mm rental cabinet, MAir enables maximum design creativity with ±15° concave and convex curves, 90° corners, and half-box offset.

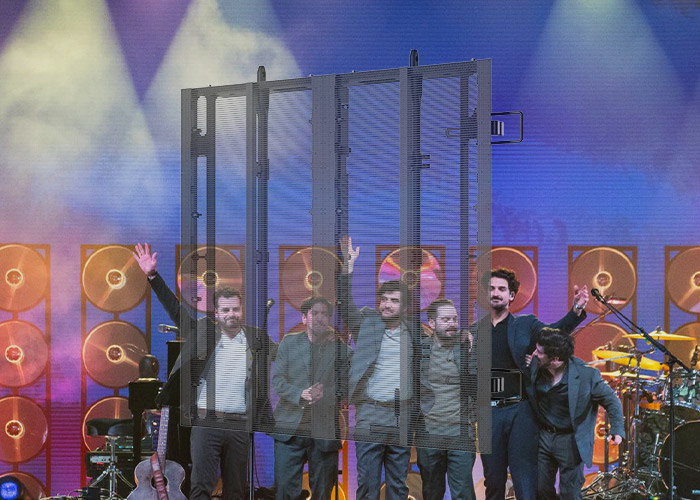

High Transparency

With up to 47% transparency (P7.8), images remain clear even in bright environments. A foldable handle design further enhances transparency.

47%

transparency

Fast Installation

Top Large positioning pins and magnetic designs

Middle Patented fast-lock system for single-person operation

Bottom Large automatic latch lock for easy release

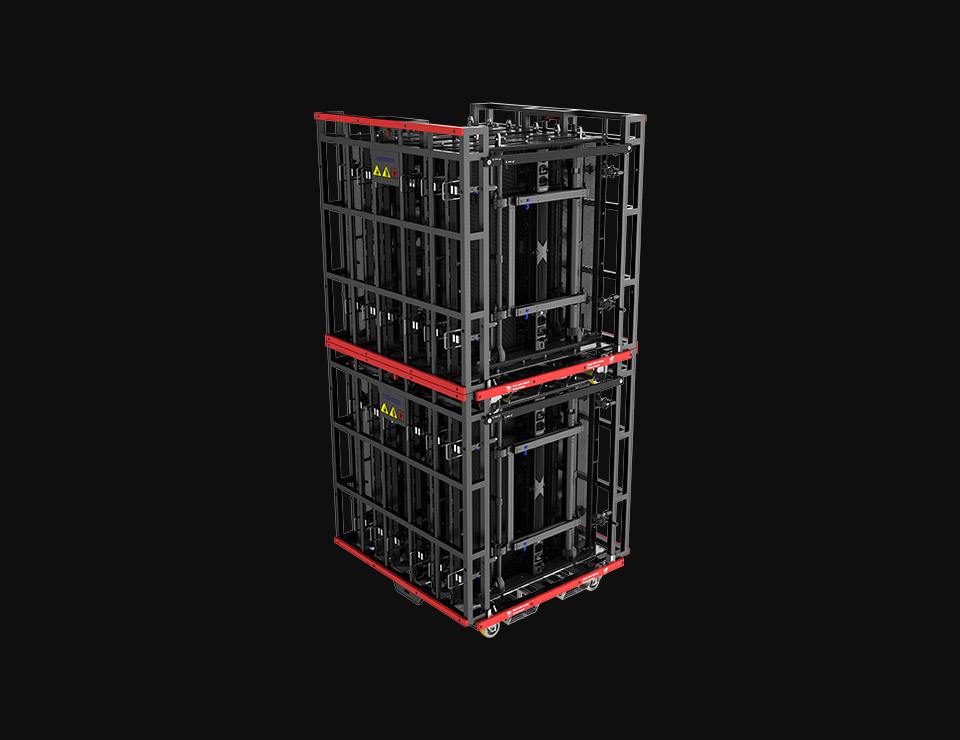

Dolly System

6-in-1 dolly system enables direct stacking, easy transport, and efficient storage, maximizing space.

APPLICATION SCENARIOS

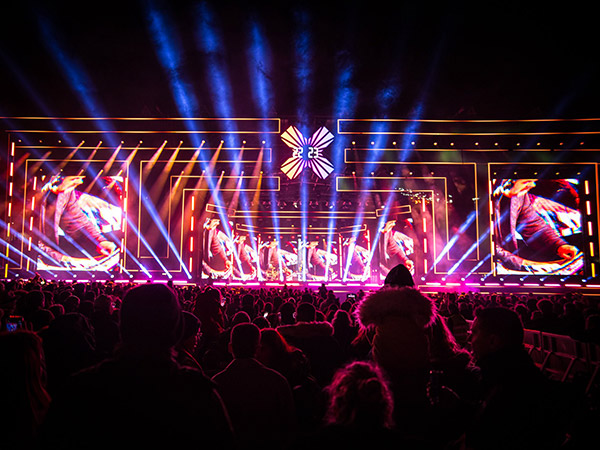

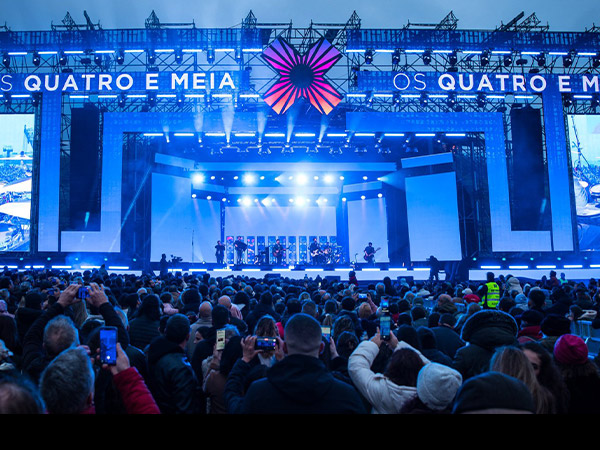

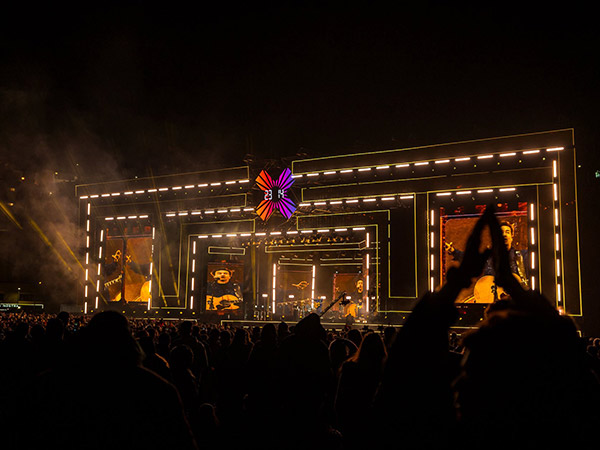

Perfect for large-scale rental events such as concerts and award ceremonies.

PARAMETERS

Pixel Pitch (mm)	5.59	7.9
Operating Environment	Outdoor
Module Size (mm)	500*250
Cabinet Size (mm)	10001000102
Module Resolution (WxH)	168*168	128*128
IP Grade	IP65
Weight (kg/Cabinet)	19
White Balance Brightness (nit)	3000~3500	4000~4500	3000~3500	4000~4500
Horizontal/Vertical Viewing Angle ( °)	160/140
Power Consumption (W/m²)	500±15% / 167±15%
Refresh Rate (Hz)	≥7680
Control System	Nova/Brompton
Product Certification	CE,FCC,ETL
