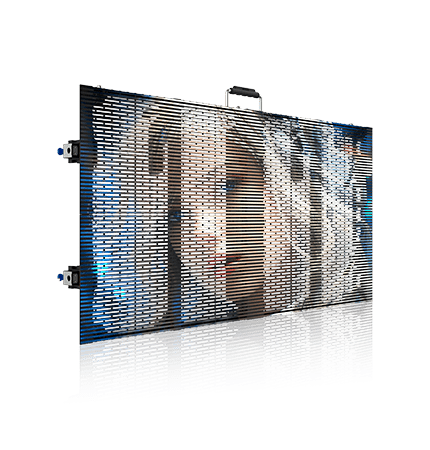

MT II Series

New upgrade version of MT series

Pixel pitch: H3.9-V7.8

Dimension: 1000*500*83mm/500*500*83mm

Operating environment: Indoor & Outdoor

Request A Solution

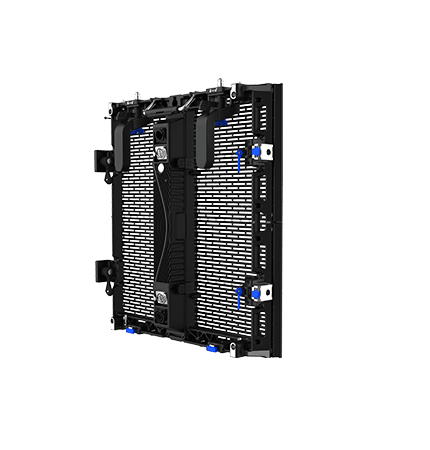

Stronger Structure, Higher Reliability

The MT II series features a high-grade magnesium alloy frame. Its unique hollow double-frame structure ensures high transparency and strong load capacity.

20m Hanging Height

The innovative hollow double-frame structure ensures high transparency while supporting stable 20m hanging, ideal for large-scale stage installations.

Transparent & Solid Modes in One Screen

MT II series features an optional shutter system: One button switch between transparent & solid modes.

One-Person Operation

Quick lock with big handle make it more comfortable and quick for installation and disassembly.

The integrated quick-lock system enables multiple configurations:

Curved LED screen (±15° adjustable)/90° corner LED display/Staggered cabinet splicing

High Transparency for Outdoor Use

MT II series delivers:

· ≥50% transparency

· 7680Hz high refresh rate

· Consistent color performance

Hanging and Stacking Installation

Same beam for hanging and stacking—lower costs, faster setup.

Stackable 28-in-1 Dolly for 500 × 1000 mm Cabinets

Versatile for Multiple Applications

Optional high-brightness solution up to 4500 nits, suitable for indoor and outdoor applications, including main screens, ceiling displays, and various event scenarios.

PARAMETERS

DOWNLOAD

Pixel Pitch (mm)	3.9-7.8	3.9-7.8
Module Size (mm)	500*250	500*250
Cabinet Size (mm)	100050083	50050083
Resolution (W×H)	256*64	128*64
IP Grade	IP65	IP65
Weight (kg/Cabinet)	7.9 (Mesh) / 8.7(Solid)	5.8
White Balance Brightness (nit)	4000-4500	4000-4500
Power Consumption (W/m²)	450±15%/135±15%	450±15%/ 135±15%
Refresh Rate (Hz)	7680	7680
Control System	Nova	Nova
Certification	CE,FCC,ETL	CE,FCC,ETL
