MG Creative-Extended Series

Shape Any Stage You Want

Pixel pitch: 1.9/2.6/2.8/3.9/4.8/5.9

MG11: 125*500*60mm

MG12: Irregular MG13: Irregular MG14: Irregular

MG15: 500*250*73mm/250*500*73mm

MG17: 375*500mm

Operating environment: Indoor & Outdoor

Request A Solution

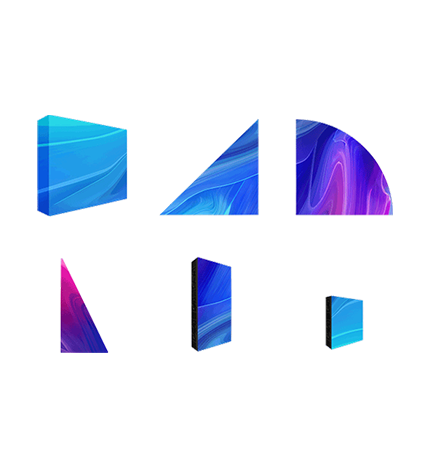

MG Creative-Extended Series Collection

The creative LED displays offer diverse collections to cater to various preferences and creative needs.

MG11: Right-angle Display

MG12: Triangle Dispaly

MG13: Sector Display

MG14 – Right Triangle/MG15 – Rectangle

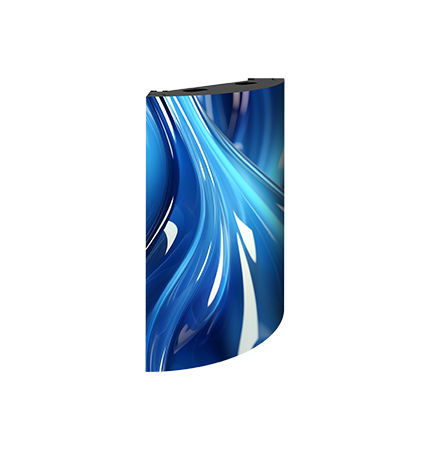

MG17: Round Corner

Four MG17 cabinets form a cylinder with a diameter of 0.48 meters, offering a variety of layouts with the MG Series.

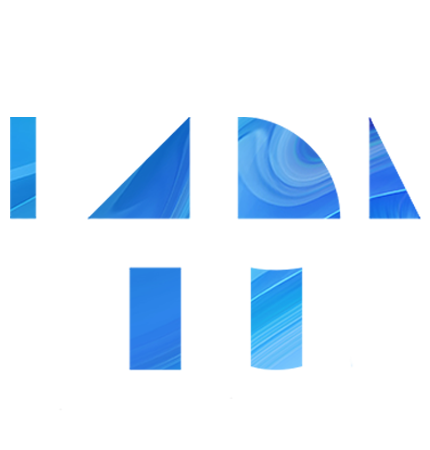

Creative Shapes

The MG Creative-Extended Series provides an array of shapes, providing versatile options to suit various preferences and requirements, whether you need an LED screen for stage rental or events.

Application Scenarios

This series achieved an extended upgrade of creative styling, which will make your stage realize not only the dislocation and arc presentation, but also the polygon, sector and more creative designs.

PARAMETERS

DOWNLOAD

Contact us for more parameters
Product Name	MG11	MG12	MG13	MG14	MG15	MG17
Pixel Pitch (mm)	2.6	2.6	2.6	2.6	2.6	2.6
Size (mm)	12550060	Irregularity	Irregularity	Irregularity	25050073	375*500
IP Grade	IP50	IP50	IP50	IP50	IP50	IP50
Weight (kg/cabinet without connectors)	1.8	4.2	4.2	2.5	4.2	4.4
White Balance Brightness (nit)	800-1000	800-1000	800-1000	800-1000	800-1000	800-1000
Power Consumption(W/㎡)	420±15%/140±15%	420±15%/140±15%	420±15%/140±15%	420±15%/140±15%	420±15%/140±15%	450±15%/140±15%
Refresh Rate(Hz)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Certification	CE, FCC, ETL	CE, FCC, ETL	CE, FCC, ETL	CE, FCC, ETL	CE, FCC, ETL	CE, FCC, ETL
