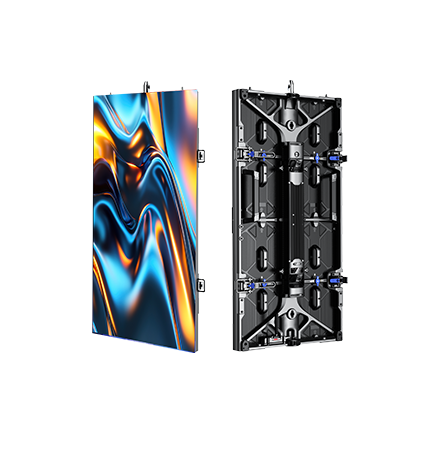

Large-scale Rental Touring Solution
Pixel Pitch: 3.9/4.6/5.6mm
Cabinet size: 500*1000*86mm
Operating environment: Indoor & Outdoor
Large-scale Rental Touring Solution
Pixel Pitch: 3.9/4.6/5.6mm
Cabinet size: 500*1000*86mm
Operating environment: Indoor & Outdoor
Central load-bearing design which supports 25 meters Max. hanging heights.
Reinforced wind bracing system is designed to resist wind pressure, providing greater stability, strength and practically.
The Mega Series fears no outdoor lighting conditions with over 5000nits high brightness (black LED) , 5000:1 contrast rate, 7680Hz refresh rate and 16-bit grayscale for crystal clear images.
The cabinet offers horizontal & vertical splicing and an adjustable arc design with ±10° for curved led walls. (2.5 degree per step)
The Mega series supports stacking and hanging installation.
The modular design of Mega series offers front and rear module replacement.
The control box supports one-piece replacement for fast servicing.
Compatible with both NovaStar and Brompton system.
Dolly allows direct stacking, simplifies installation, saves storage space, and improves efficiency.
It is an ideal choice for large-scale concerts, music festival, stage performance, commercial exhibitions, press conferences and other high-end outdoor rental projects.
| Pixel Pitch (mm) | 3.91 | 4.63 | 5.68 |
| Operating Environment | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor |
| Module Size (mm) | 250*500 | 250*500 | 250*500 |
| Cabinet Size (mm) | 500*1000*86 | 500*1000*86 | 500*1000*86 |
| Cabinet Resolution (W×H) | 64*128 | 54*108 | 44*88 |
| IP Grade | IP65 | IP65 | IP65 |
| Weight (kg/Cabinet) | 12.5 | 12.5 | 12.5 |
| White Balance Brightness (nit) | 5000 | 5000 | 5000 |
| Horizontal/Vertical Viewing Angle ( °) | 160/120 | 160/120 | 160/120 |
| Power Consumption (W/m²) | 800±15%/267±15% | 800±15%/267±15% | 800±15%/267±15% |
| Refresh Rate (Hz) | ≥7680 | ≥7680 | ≥7680 |
| Control System | Nova / Brompton | Nova / Brompton | Nova / Brompton |
| Certification | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL |
