Universal Arc, Free to Switch
Pixel pitch: 1.9/2.6/2.9/3.9mm
Dimension: 500*500*73mm
Operating environment: Indoor & Outdoor
Universal Arc, Free to Switch
Pixel pitch: 1.9/2.6/2.9/3.9mm
Dimension: 500*500*73mm
Operating environment: Indoor & Outdoor

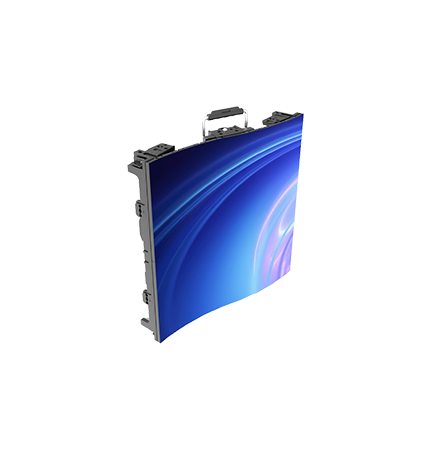

The Xtra Series can create ±45° arcs, S shapes, and eight cabinets can form a 1.27m diameter cylinder, making it the perfect choice for curved LED walls.

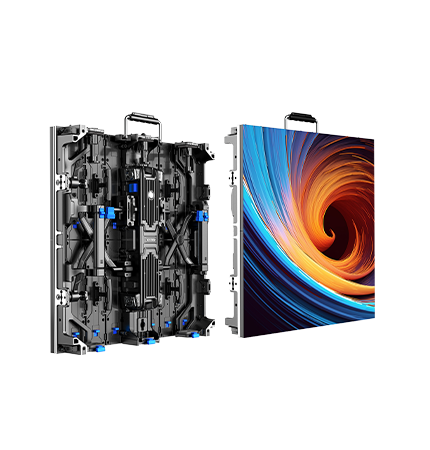

The cabinet features an integrated modular design with quick locks on all sides. The magnetic hanging design allows for easy single person installation.
The Xtra Series uses flexible modules, and is equipped with buckles on the top and bottom to ensure a fixed module, achieving a smoother and more natural visual consistency when curved.
More creative shapes are available in Xtra Series as it can be spliced with MU, MG, and Rubik Series which shows great integration ability for different applications.
The modular design of the power box allows for rear maintenance without removing the power box cover.
The Xtra Series is ideal for indoor and outdoor concerts, sports events, award ceremonies, celebrations, conferences, and more.
| Pixel Pitch (mm) | 1.9 | 2.6 | 2.9 | 3.9 |
| Operating Environment | Indoor | Indoor | Outdoor | Outdoor |
| Module Size (mm) | 500*250 | 500*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 |
| Cabinet Resolution (W×H) | 256*256 | 192*192 | 168*168 | 128*128 |
| IP Grade | IP50 | IP50 | IP65 | Front IP65 Rear IP54 |
| Weight (kg/Cabinet) | 7.5 | 7.5 | 7.5 | 7.5 |
| White Balance Brightness (nit) | 1200-1500 | 1200-1500 | 3500-3800/4000-4500 | 4000-4200/5000-5500 |
| Horizontal/Vertical Viewing Angle ( °) | 160/120 | 160/120 | 160/120 | 160/160 |
| Power Consumption (W/m²) | 650±15% / 220±15% | 650±15% / 220±15% | 700±15% /235±15% | 700±15% /235±15% |
| Refresh Rate (Hz) | ≥3840(3840,7680) | ≥3840(3840,7680) | ≥3840 | ≥3840 |
| Control System | Nova | Nova | Nova | Nova |
| Certification | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL |
