New upgrade version of MT series
Pixel pitch: H3.9-V7.8
Cabinet size: 1000*500*83mm/500*500*83mm
Operating environment: Indoor & Outdoor
New upgrade version of MT series
Pixel pitch: H3.9-V7.8
Cabinet size: 1000*500*83mm/500*500*83mm
Operating environment: Indoor & Outdoor

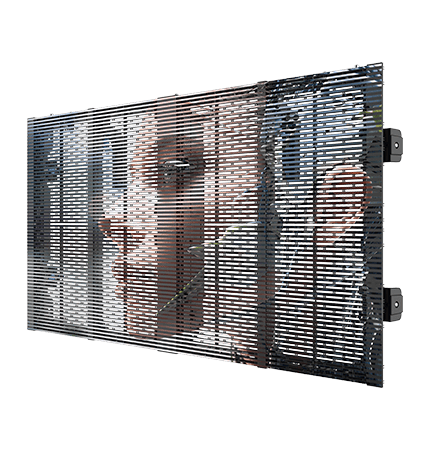

MT II series is built with a high-grade magnesium alloy frame and control box, achieving both lightweight design and superior strength.
The innovative hollow dual-frame structure ensures high transparency while supporting stable 20m hanging, ideal for large-scale stage installations.
MT II series features an optional shutter system: One-click switch between transparent & solid modes.
Curved LED screen (±15° adjustable)/
Quick lock with big handle make it more comfortable and quick for installation and disassembly.
MT II series delivers:
· ≥50% transparency
· 7680Hz high refresh rate
· Consistent color performance
Optional high-brightness solution up to 4200 nits, suitable for indoor and outdoor applications, including main screens, ceiling displays, and various event scenarios.
Same beam for hanging and stacking—lower costs, faster setup.
| Pixel Pitch (mm) | 3.9-7.8 | 3.9-7.8 |
| Module Size (mm) | 500*250 | 500*250 |
| Cabinet Size (mm) | 1000*500*83 | 500*500*83 |
| Resolution (W×H) | 256*64 | 128*64 |
| IP Grade | IP65 | IP65 |
| Weight (kg/Cabinet) | 7.9 | 5.8 |
| White Balance Brightness (nit) | 4000-4200 | 4000-4200 |
| Power Consumption (W/m²) | 450±15%/135±15% | 200±15%/ 100±15% |
| Refresh Rate (Hz) | 7680 | 7680 |
| Control System | Nova | Nova |
| Certification | CE,FCC,ETL | CE,FCC,ETL |
