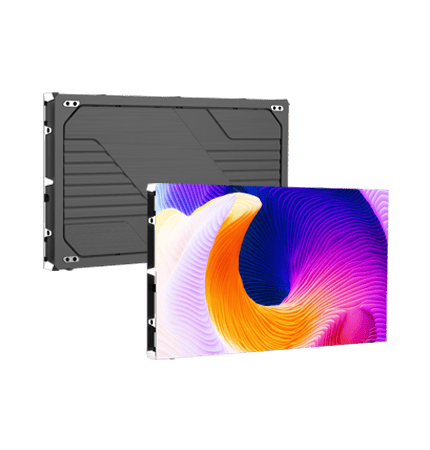

New Upgraded COB Flip Technology
Pixel pitch: 0.78/0.9/0.93/1.25/1.56/1.87mm
Dimension: 600*337.5*39.75mm/600*337.5*26mm
Operating environment: Indoor
New Upgraded COB Flip Technology
Pixel pitch: 0.78/0.9/0.93/1.25/1.56/1.87mm
Dimension: 600*337.5*39.75mm/600*337.5*26mm
Operating environment: Indoor
· New COB flip tech for a cool screen touch, uniform black color, and enhanced protection.
Standard: 600×337.5×39.75 mm
Slim: 600×337.5×26 mm – thinner profile to maximize space.
High Black Consistency+Enhanced Anti-collision Ability+Low Power Consumption+Fine Pixel Pitch
It supports DCI color gamut, >97% color uniformity, 8K HD, and 22-bit+ output.
High refresh rate minimizes motion blur, providing a smoother visual experience for fast-paced content such as gaming and action movies. To capture every detail for you. (for 1.25/1.56/1.87)
Features a 1000 nits brightness level, providing clarity and vibrant colors within interior spaces.
Lower power consumption and better heat dissipation, creating the cool screen, extend the life of the screen components.
The Mnano maintains long-term black consistency with a 10,000:1 contrast ratio for an enhanced viewing experience.
Panel packaging and new optical material surface treatment, the front protection level can be up to IP54, panel hardness of 4H.
Precise cabinet and adjustable splicing design, high surface flatness, easily achieve seamless splicing into 2k / 4k / 8k screen display.

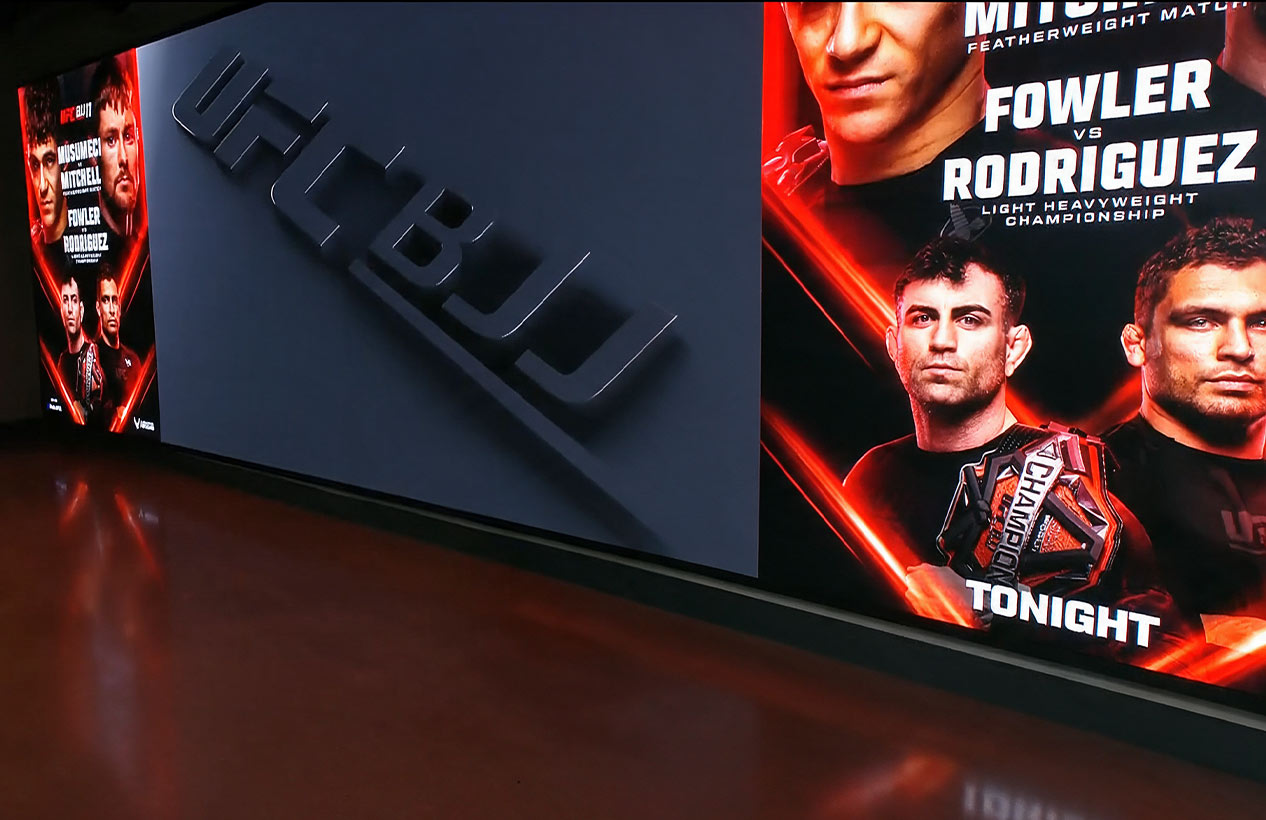

TV studio, conference room, commercial retail, education center and other kinds of indoor display.
| Standard | |||||
| Pixel Pitch (mm) | P0.78 | P0.9 | P1.25 | P1.56 | P1.87 |
| Encapsulation | COB(common cathode) | COB (Common anode) | COB (Common anode) | COB (Common anode) | COB (Common anode) |
| Module Size (mm) | 150*168.75 | 300*168.75 | 300*168.75 | 300*168.75 | 150*168.75 |
| Cabinet Size (mm) | 600*337.5*39.75 | 600*337.5*39.75/ 600*337.5*26 |
600*337.5*39.75/ 600*337.5*26 |
600*337.5*39.75/ 600*337.5*26 |
600*675*39.75/ 600*337.5*39.75 |
| Cabinet Resolution (W×H) | 768*432 | 640*360 | 480*270 | 384*216 | 320*360/320*180 |
| IP Grade | Front IP54 | Front IP54 | Front IP54 | Front IP54 | Front IP54 |
| Weight (kg/cabinet) | 4 | 3.4/3.2 | 3.4/3.2 | 3.4/3.2 | 7.9/4 |
| White Balance Brightness (nit) | 600 | 600 | 600 | 600 | 550 |
| Horizontal / Vertical Viewing Angle | 160 | 160 | 160 | 160 | 160 |
| Power Consumption(W/㎡) | 420/140 | 321/107 | 296/99 | 272/91 | 321/107 |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Control System | Nova | Nova | Nova | Nova | Nova |
| Certification | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC |
| Pro | |||||
| Pixel Pitch (mm) | P0.9 Pro | P1.25 Pro | P1.56 Pro | P1.87 Pro | |
| Encapsulation | COB (Common anode) | COB (Common anode) | COB (Common anode) | COB (Common anode) | |
| Module Size (mm) | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 | |
| Cabinet Size (mm) | 600*337.5*39.75 | 600*337.5*39.75 | 600*337.5*39.75 | 600*337.5*39.75 | |
| Cabinet Resolution (W×H) | 640*360 | 480*270 | 384*216 | 320*180 | |
| IP Grade | Front IP54 | Front IP54 | Front IP54 | Front IP54 | |
| Weight (kg/cabinet) | ≈4 | ≈4 | ≈4 | ≈4 | |
| White Balance Brightness (nit) | 1000 | 1000 | 1000 | 1000 | |
| Horizontal / Vertical Viewing Angle | 160 | 160 | 160 | 160 | |
| Power Consumption(W/㎡) | ≈494/165 | ≈445/149 | ≈356/119 | ≈356/119 | |
| Refresh Rate(Hz) | 7680 | 7680 | 7680 | 7680 | |
| Control System | Nova | Nova | Nova | Nova | |
| Certification | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC | |
| Ultra | |||||
| Pixel Pitch (mm) | P0.78 | P0.93 | P1.25 | P1.56 | P1.875 |
| Encapsulation | COB (Common anode) | COB (Common anode) | COB (Common anode) | COB (Common anode) | COB (Common anode) |
| Module Resolution (W×H) | 192*216 | 160*180 | 120*135 | 96*108 | 80*90 |
| Module Size (mm) | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 |
| Cabinet Resolution (W×H) | 768*432 | 640*360 | 480*270 | 384*216 | 320*180 |
| Cabinet Size (mm) | 600*337.5*39.75 | 600*337.5*39.75 | 600*337.5*39.75 | 600*337.5*39.75 | 600*337.5*39.75 |
| Weight (kg/cabinet) | 4 | 4 | 4 | 4 | 4 |
| IP Grade | Front IP54 | Front IP54 | Front IP54 | Front IP54 | Front IP54 |
| White Balance Brightness (nit) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Horizontal / Vertical Viewing Angle | 160 | 160 | 160 | 160 | 160 |
| Power Consumption(W/㎡) | ≈470/157 | ≈460/154 | ≈425/142 | ≈386/129 | ≈376/126 |
| Refresh Rate(Hz) | 15360 | 15360 | 15360 | 15360 | 15360 |
| Control System | Nova | Nova | Nova | Nova | Nova |
| Certification | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC | CE,ETL,FCC,PSE,CCC |
