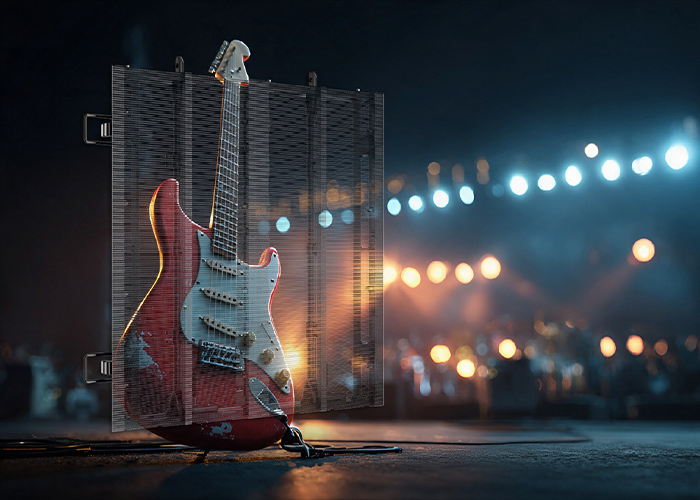

MAIR TRANSPARENT DISPLAY

Light · Transparent · Diverse · Flexible for Touring

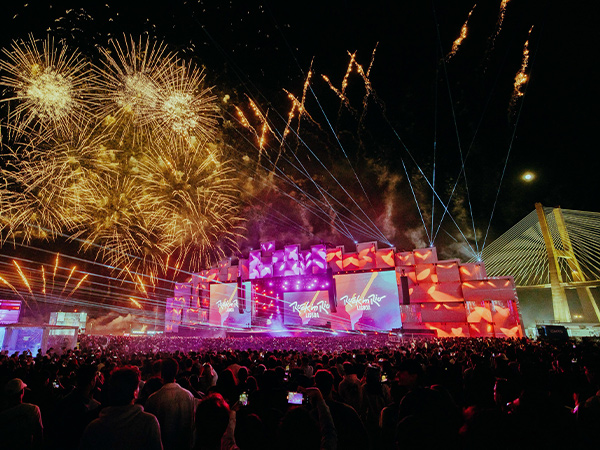

The MAir series is a transparent LED display designed for large-scale touring stages. Lightweight, transparent, flexible with solid version and easy to install - it delivers a stable and reliable display solution for major events, empowering every creative idea with outstanding visual performance.

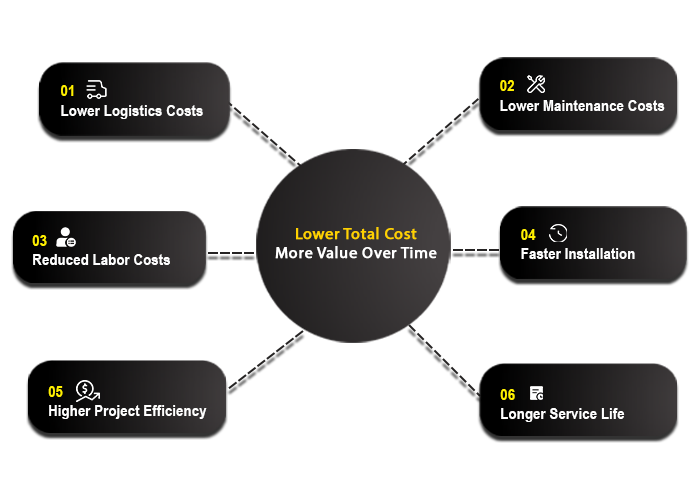

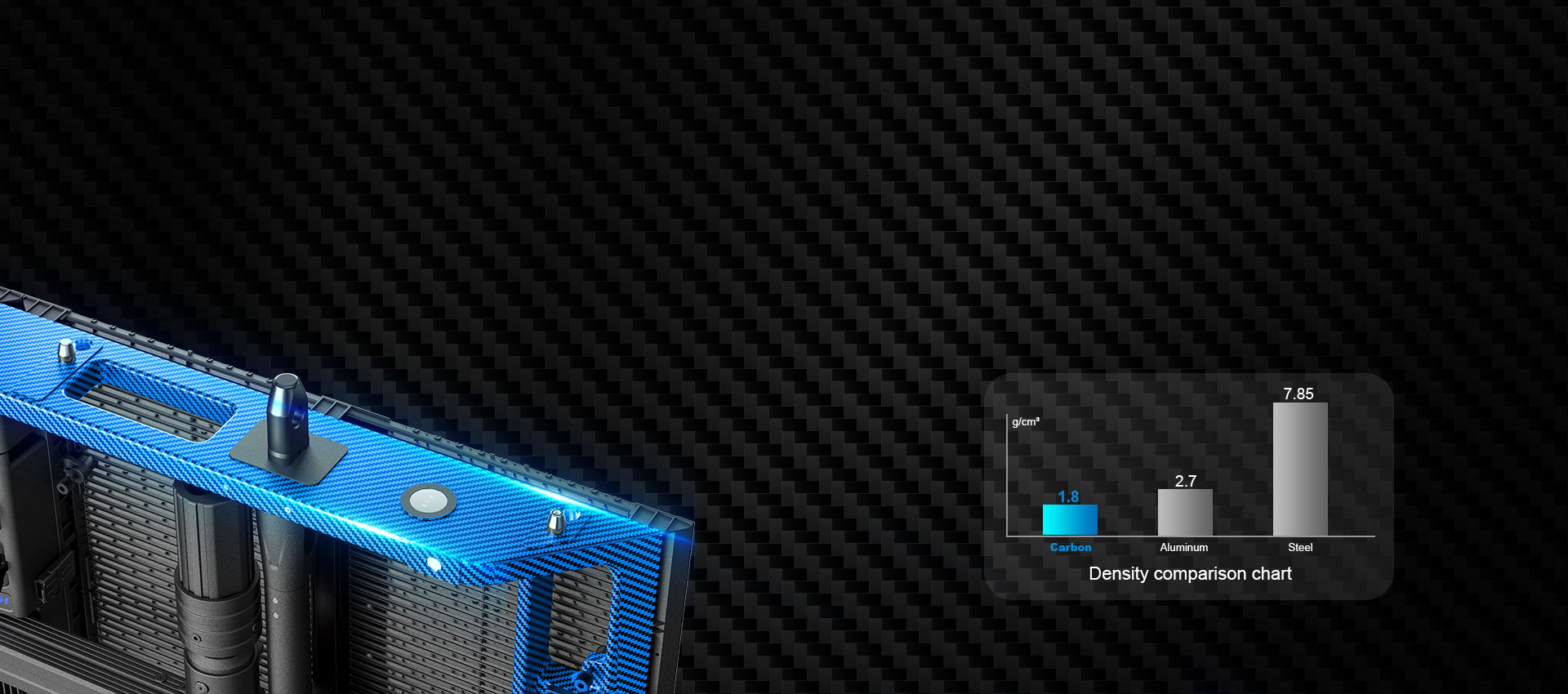

What MAir’s Carbon Fiber Cabinet Delivers

High-strength, low-density carbon fiber delivers exceptional strength at a fraction of the weight, with excellent durability and dimensional stability. Lighter · Tougher · More durable · More impact resistant · More stable · More precise · More weather resistant · More wear & corrosion resistant

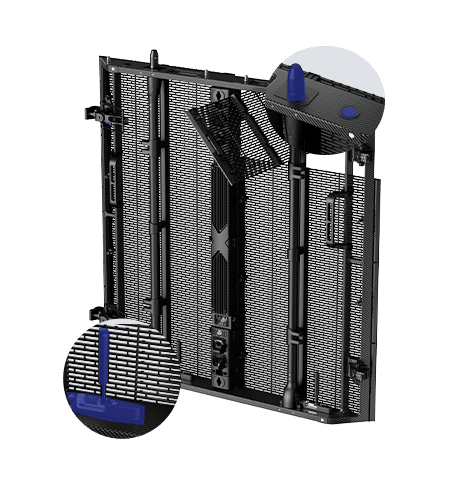

Fast Installation

Top Large positioning pins and magnetic designs

Middle Patented fast-lock system for single-person operation

Bottom Large automatic latch lock for easy release

PARAMETERS

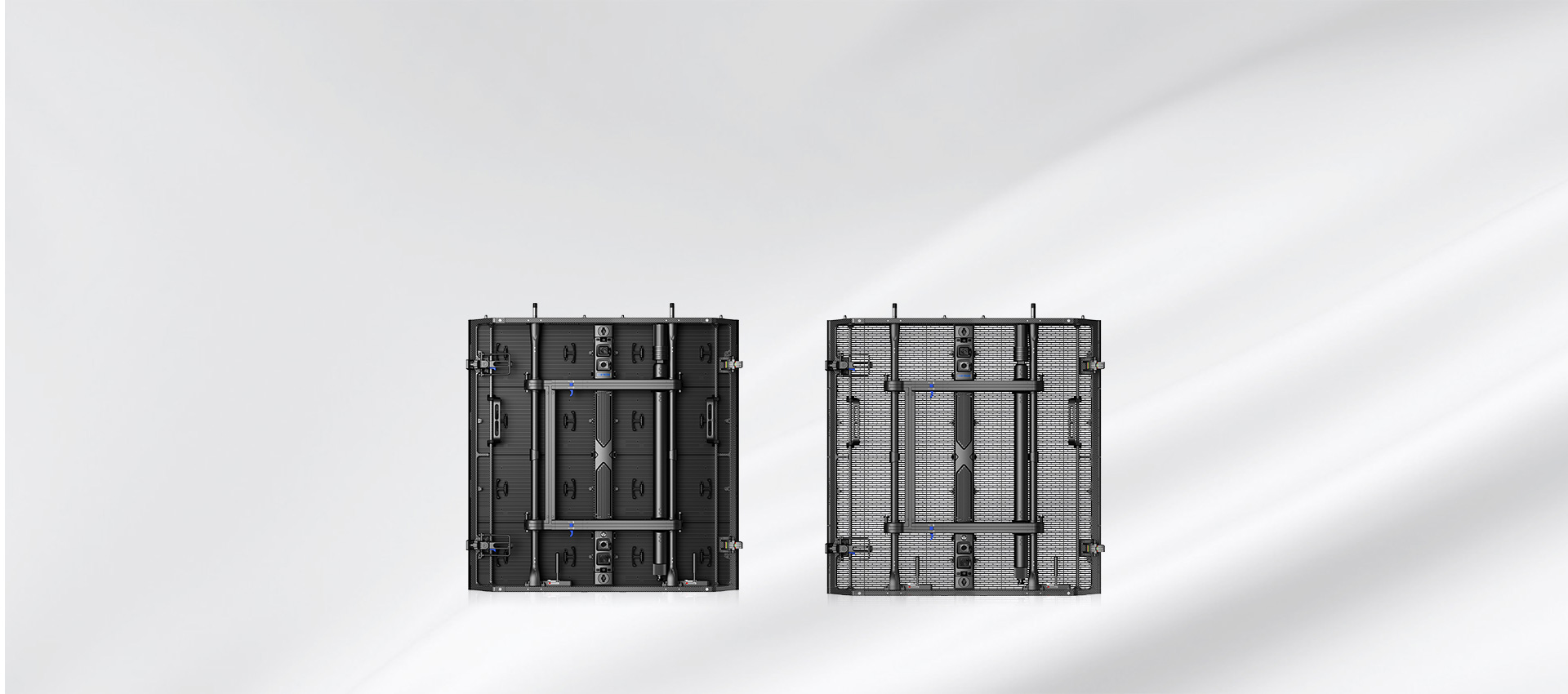

Mesh Version
Pixel Pitch (mm)	5.95	5.95	7.81	7.81
Operating Environment	Outdoor	Outdoor	Outdoor	Outdoor
Module Size (mm)	500*250	500*250	500*250	500*250
Cabinet Size (mm)	10001000102	10001000102	10001000102	10001000102
Cabinet Resolution (W×H)	168*168	168*168	128*128	128*128
IP Grade	IP65	IP65	IP65	IP65
Weight (kg/Cabinet)	19	19	19	19
White Balance Brightness (nit)	3500~4000	4500~5000	3500~4000	4500~5000
Horizontal/Vertical Viewing Angle ( °)	160/140	160/140	160/140	160/140
Power Consumption (W/m²)	500±15%/ 167±15%	500±15%/ 167±15%	500±15%/ 167±15%	500±15%/ 167±15%
Refresh Rate (Hz)	≥7680	≥7680	≥7680	≥7680
Control System	Nova / Brompton	Nova / Brompton	Nova / Brompton	Nova / Brompton
Product Certification	CE,FCC,ETL	CE,FCC,ETL	CE,FCC,ETL	CE,FCC,ETL

Solid Version
Pixel Pitch (mm)	5.95	5.95
Operating Environment	Outdoor	Outdoor
Module Size (mm)	500*250	500*250
Cabinet Size (mm)	10001000102	10001000102
Cabinet Resolution (W×H)	168*168	168*168
IP Grade	IP65	IP65
Weight (kg/Cabinet)	23.5	23.5
White Balance Brightness (nit)	3500~4000	4500~5000
Horizontal/Vertical Viewing Angle ( °)	160/140	160/140
Power Consumption (W/m²)	500±15%/ 167±15%	500±15%/ 167±15%
Refresh Rate (Hz)	≥7680	≥7680
Control System	Nova / Brompton	Nova / Brompton
Product Certification	CE,FCC,ETL	CE,FCC,ETL
