MEGA LED DISPLAY

Fully reliable, built for grand stage.

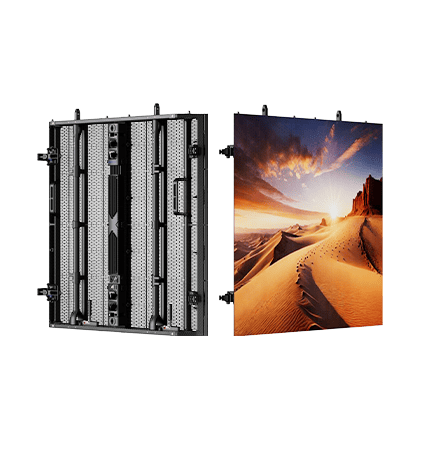

Mega Series is a stable and fast-deploy LED platform for outdoor touring, using a 500×1000 mm cabinet with pixel pitches from 3.9 to 5.6 mm. It is designed for efficient installation and reliable performance across demanding touring productions.

KEY FEATURES

Strong Structural Protection

Stunning Visual Effect

Integrated Transport System

Fast Installation

All-in-One Maintenance

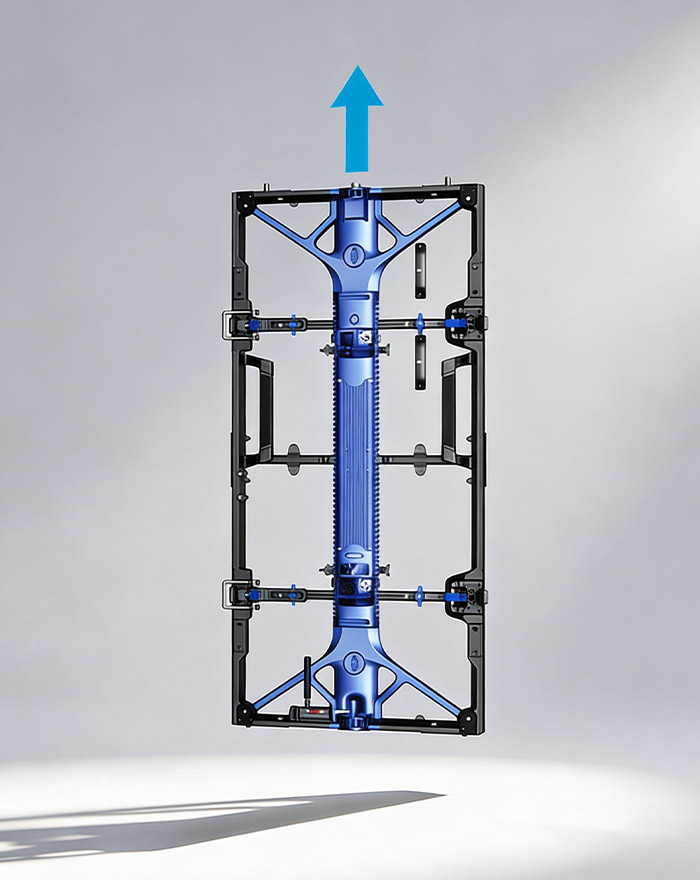

Strong Structural Protection

Central load-bearing design which supports 25 meters Max. hanging heights. Reinforced wind bracing system is designed to resist wind pressure, providing greater stability, strength and practically.

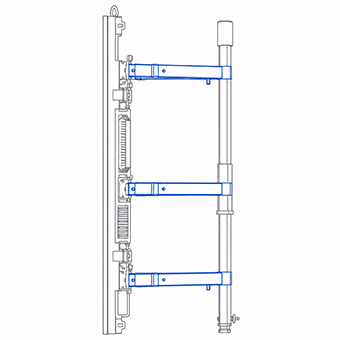

Reinforced Wind Bracing System

Designed to resist wind pressure, providing enhanced stability, strength, and practicality.

Folded: 114mm Unfolded: 410mm

Fast Installation

Top Large positioning pins and magnetic designs

Middle Patented fast-lock system for single-person operation

Bottom Large automatic latch lock for easy release

Stunning Visual Effect

The Mega Series fears no outdoor lighting conditions with over 5000nits high brightness (black LED) , 5000:1 contrast rate, 7680Hz refresh rate and 16-bit grayscale for crystal clear images.

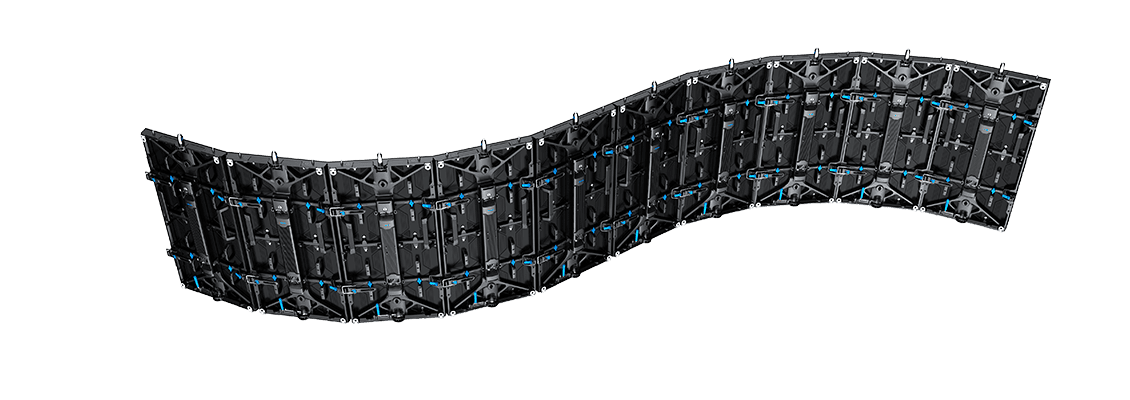

Creative Shapes

The cabinet offers horizontal & vertical splicing and an adjustable arc design with ±10° for curved led walls. (2.5 degree per step)

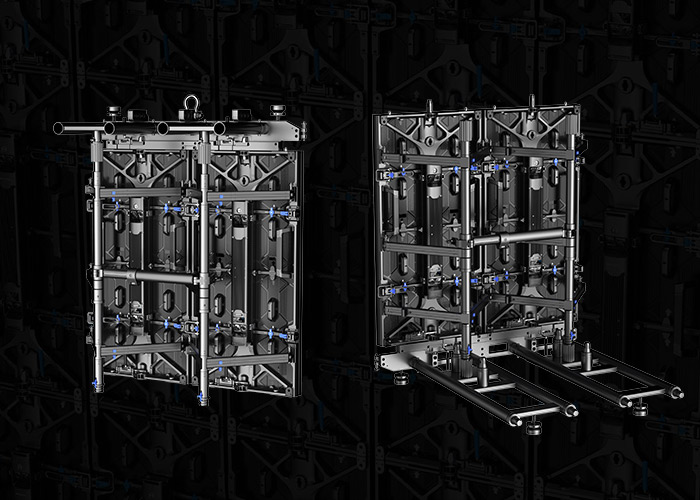

Universal Hanging & Stacking System

One beam for both hanging and stacking for faster setup. Adjustable center of gravity ensures screen stability and safety.

Efficiency

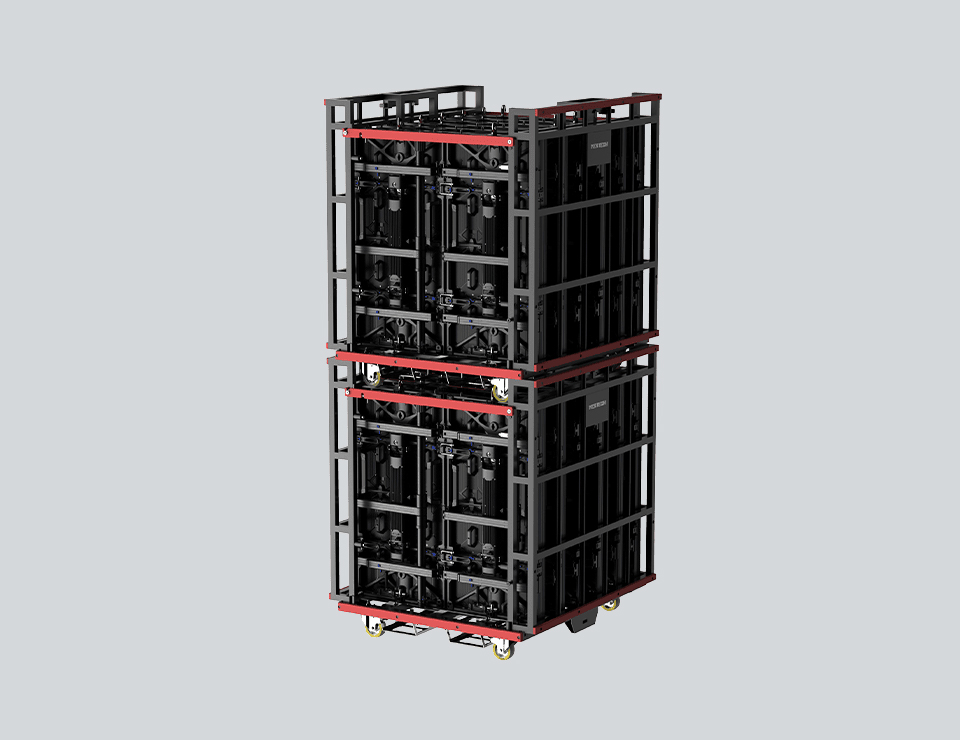

Dolly System

12-in-1 dolly system enables direct stacking, easy transport, and efficient storage, maximizing space.

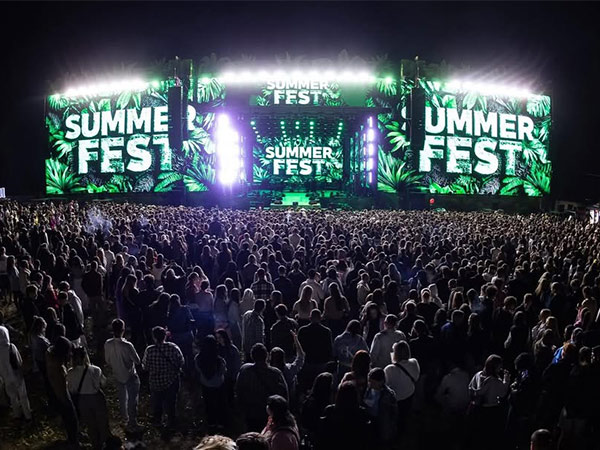

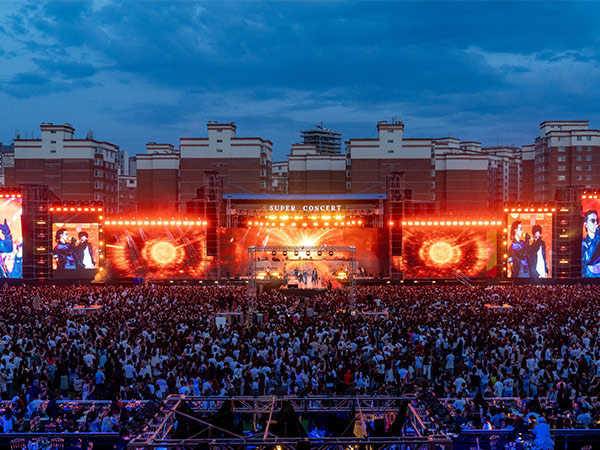

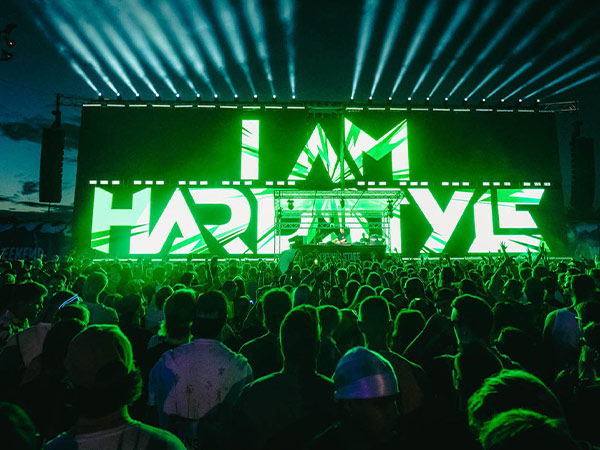

APPLICATION SCENARIOS

It is an ideal choice for large-scale concerts, music festival, stage performance, commercial exhibitions, press conferences and other high-end outdoor rental projects.

PARAMETERS

Pixel Pitch (mm)	3.91	4.63	5.68
Operating Environment	Indoor & Outdoor
Module Size (mm)	250*500
Cabinet Size (mm)	500100086
Cabinet Resolution (W×H)	128*256	108*216	88*176
IP Grade	IP65
Weight (kg/Cabinet)	12.5
White Balance Brightness (nit)	5000
Horizontal/Vertical Viewing Angle ( °)	160/120
Power Consumption (W/m²)	800±15%/267±15%
Refresh Rate (Hz)	≥7680
Control System	Nova / Brompton
Certification	CE,FCC,ETL
