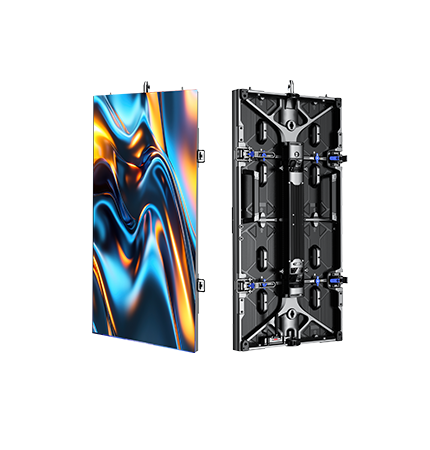

Mega Series
Pixel Pitch ( mm ) : 3.91/4.6/5.6/
Read More
The MAir series is a transparent LED display designed for large-scale touring stages. Lightweight, transparent, flexible with solid version and
easy to install - it delivers a stable and reliable display solution for major events, empowering every creative idea with outstanding visual performance.
MAir uses the industry’s first seamless, one-piece carbon fiber molded frame with central metal support rods, making it lightweight yet durable.
With up to 50% transparency (P7.8), images remain clear even in bright environments. A foldable handle design further enhances transparency.

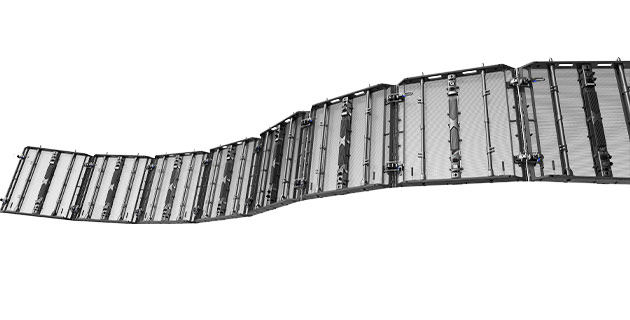

Even as YES TECH’s largest 1000 × 1000 mm rental cabinet, MAir enables maximum design creativity with ±15° concave and convex curves, 90° corners, and half-box offset.
Metal support rods with a wind-resistant frame, rated for up to 20 m/s wind speeds and 25 m hanging height.
Top: Large positioning pins and magnetic designs
Middle: Patented fast-lock system for single-person operation
Bottom: Large automatic latch lock for easy release
6-in-1 dolly system enables direct stacking, easy transport, and efficient storage, maximizing space.
Perfect for large-scale rental events such as concerts and award ceremonies.
| Pixel Pitch (mm) | 5.95 | 5.95 | 7.8 | 7.8 |
| Operating Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| Module Size (mm) | 500*250 | 500*250 | 500*250 | 500*250 |
| Cabinet Size (mm) | 1000*1000*102 | 1000*1000*102 | 1000*1000*102 | 1000*1000*102 |
| Cabinet Resolution (W×H) | 168*168 | 168*168 | 128*128 | 128*128 |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Weight (kg/Cabinet) | 19 | 19 | 19 | 19 |
| White Balance Brightness (nit) | 3000~3500 | 4000~4500 | 3000~3500 | 4000~4500 |
| Horizontal/Vertical Viewing Angle ( °) | 160/140 | 160/140 | 160/140 | 160/140 |
| Power Consumption (W/m²) | 500±15%/ 167±15% | 500±15%/ 167±15% | 500±15%/ 167±15% | 500±15%/ 167±15% |
| Refresh Rate (Hz) | ≥7680 | ≥7680 | ≥7680 | ≥7680 |
| Control System | Nova / Brompton | Nova / Brompton | Nova / Brompton | Nova / Brompton |
| Product Certification | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL |
