YES TECH MU Series vs Mega Series: How Do You Choose?

YES TECH MU Series and Mega Series can appear similar at first because both are rental LED displays built with metal cabinets. However, products in the same category can still follow very different design priorities, which may not be immediately clear from their cabinet construction alone.
This comparison examines YES TECH MU Series and Mega Series in terms of installation, configuration flexibility, structural design, core specifications, rental logistics, and project fit. These factors provide a clearer basis for understanding the two series before deciding which one better matches a specific rental display project.

YES TECH MU Series vs Mega Series: Core Specifications

YES TECH MU Series: Supporting Flexible Rental Setups

Rental projects rarely follow the same blueprint twice. Screen dimensions change, venues impose different access restrictions, and creative teams may request anything from a conventional flat wall to a curved stage feature. YES TECH MU Series is designed to help rental teams respond to these changes without making installation and inventory management unnecessarily complicated.

A Large Handle Makes Repeated Installation Easier

A large handle provides installers with a practical and comfortable grip when lifting, positioning, and removing each cabinet. It also supports single-person cabinet handling, helping crews work more efficiently during repetitive installation tasks.
That convenience becomes especially valuable on touring projects, where the same display may be assembled and dismantled several times across different venues. Easier handling can reduce unnecessary effort and help the crew maintain a steadier installation rhythm throughout the tour.

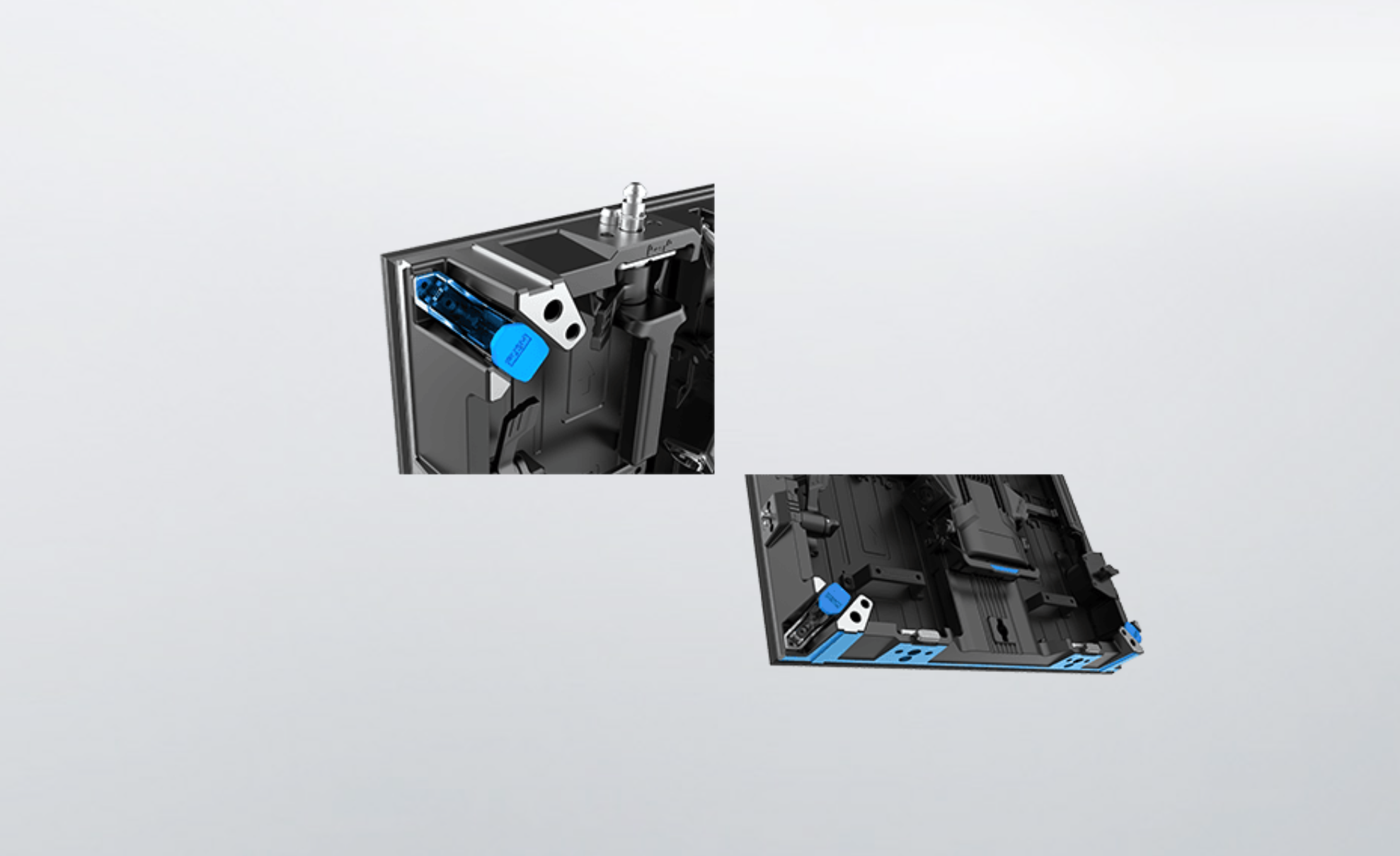

Anti-Collision Protection Helps Withstand Frequent Handling

Rental LED cabinets spend much of their working life in motion. They are transferred between storage areas, transport cases, staging zones, and installation structures, creating repeated opportunities for bumps and accidental contact.

This design helps protect vulnerable LED lamp components during these movements. By reducing the risk of handling-related damage, the design can help rental companies keep more cabinets ready for use and avoid preventable repairs between events.

Front and Rear Access Adapt to Different Venues

Maintenance space can vary considerably from one venue to another. A screen installed on an open stage may provide ample room behind the cabinets, while a display positioned close to a wall or scenic structure may leave little or no rear access.
MU supports both front and rear maintenance, allowing technicians to choose the more practical service route for each installation. This gives rental teams greater freedom when planning screen placement and makes it easier to use the same equipment across venues with different spatial constraints.

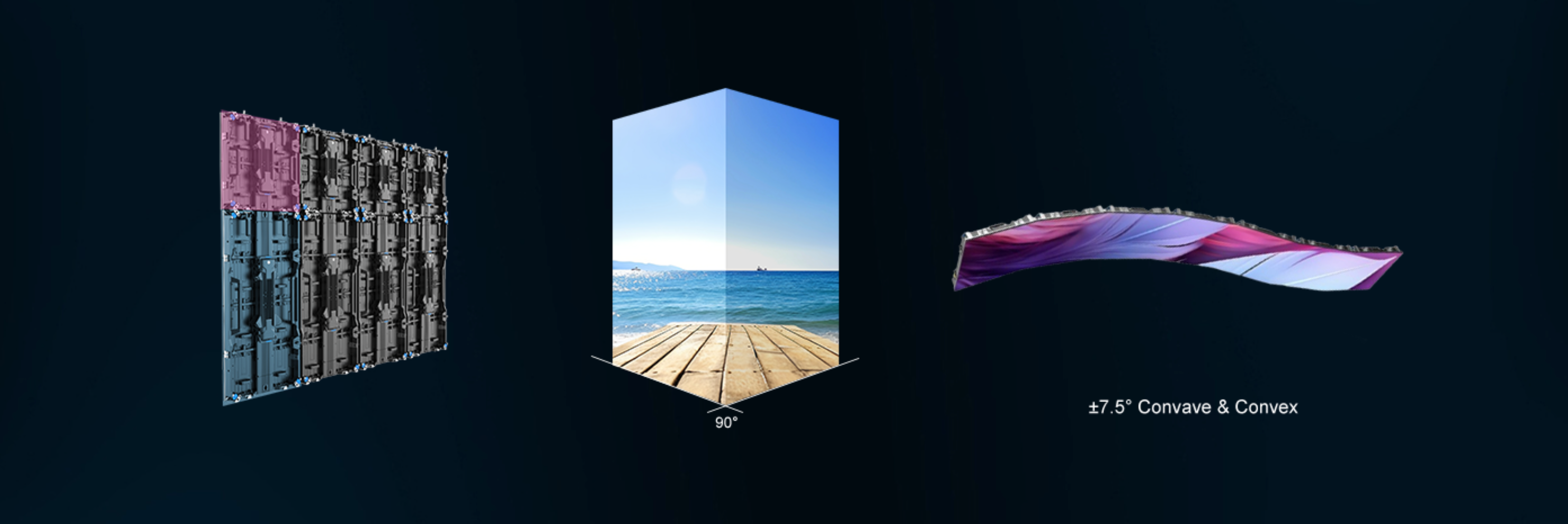

Adjustable Arc Splicing Expands Creative Possibilities

A rental screen does not always need to be flat. MU Series supports ±7.5° arc splicing, with an optional ±9° configuration for projects that require a more pronounced curve.
Cabinets can be assembled in either direction, giving designers the flexibility to create concave, convex, and other curved display forms. Instead of limiting the stage design to the shape of the cabinet system, the screen can follow the visual language of the event more naturally.

Interchangeable Modules Make One Platform More Versatile

The universal cabinet frame allows modules with different pixel pitches to be interchanged within the MU Series. This gives rental companies more room to adapt screen specifications to different viewing distances, venue sizes, and project budgets while continuing to work with the same cabinet platform.

As a result, an existing inventory can serve a broader range of applications without requiring a completely separate structural system for every pixel-pitch option. The final configuration will still depend on the selected modules and the technical requirements of each project.

Cross-Series Compatibility Creates More Inventory Options

MU Series is also compatible with RUBIK, MG, and Xtra. For rental companies with mixed or expanding inventories, this compatibility makes it easier to combine available equipment when developing new screen formats.
Rather than treating every product series as an isolated pool of hardware, rental teams can make better use of what they already own. This can simplify inventory planning and provide more flexibility when a project requires an unconventional layout or a last-minute adjustment.

A Flexible Choice for Fast-Changing Projects

Together, these features make MU Series particularly well suited to projects where requirements change frequently. Easier handling supports repeated installation, flexible maintenance access accommodates different venues, and creative splicing and cabinet compatibility open up more design possibilities.
For rental teams that value adaptability and creative freedom more than extreme hanging height, YES TECH MU Series provides a platform that can evolve from one event to the next.

YES TECH Mega Series: Supporting Large Outdoor Rental Structures

Large outdoor LED displays bring challenges that go far beyond image quality. As a screen becomes taller, its rigging loads increase, exposure to wind becomes more significant, and access for installation and maintenance becomes more demanding. Transporting a large number of panels between venues also requires a system that can be packed and deployed efficiently.

YES TECH Mega Series brings these requirements together in a coordinated rental solution designed for large-scale outdoor use.

A 25-Metre Hanging Height Enables Larger Visual Builds

YES TECH Mega Series uses a central load-bearing design that supports hanging heights of up to 25 m. This gives production teams the vertical capacity required for concerts, festivals, touring stages, and other events where the LED display must remain visible across a large venue.
The central load-bearing approach helps transfer forces through the display structure, allowing project planners to treat hanging height and rigging as integral parts of the screen system. For ambitious stage designs, this makes it possible to create a stronger vertical visual presence without relying on a conventional cabinet structure intended for smaller installations.

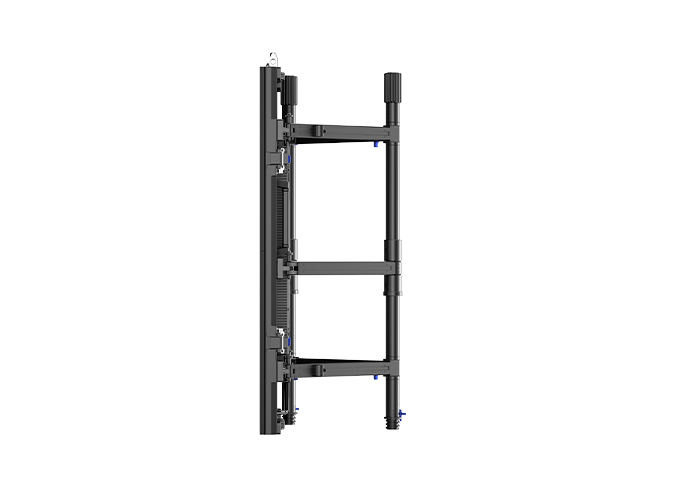

Reinforced Wind Bracing Improves Outdoor Stability

Outdoor screens must remain stable in conditions that are more demanding and less predictable than those of an indoor venue. Mega Series’ reinforced wind-bracing system is designed to strengthen the installation and improve its resistance to wind pressure.

This added support gives project teams a more suitable foundation for large outdoor builds, where structural confidence is essential. Actual wind limits and engineering requirements must still be calculated according to the screen dimensions, venue, supporting structure, and local environmental conditions.

A Climbable Air Frame Provides Practical Maintenance Access

Servicing a tall outdoor screen can be difficult when technicians have no practical way to reach different areas of the structure. Mega addresses this challenge with a climbable air-frame design that can provide qualified personnel with access during installation and maintenance when permitted by the project’s safety plan.
The frame measures 410 mm when unfolded, creating usable access space behind the display. It folds down to 114 mm for storage and transport, so the maintenance structure does not create an unnecessary logistical burden when the screen is moving between venues.

Universal Beams Support Hanging and Stacking

Not every event uses the same installation method. Some displays need to be suspended from a stage structure, while others are built from the ground up.
Mega’s universal hanging and bottom beams support both hanging and stacked configurations. Rental teams can therefore respond to different venue layouts while continuing to use a coordinated hardware system. This versatility also reduces the need to prepare an entirely separate support solution whenever the installation method changes.

A 12-Panel Touring Dolly Simplifies Transportation

Moving a large outdoor display efficiently can save valuable time before and after an event. Mega’s touring dolly holds 12 panels and supports both two-level stacking and direct stacking.

These options allow rental teams to organize the panels according to their transport vehicles, warehouse conditions, and installation workflow. By storing more panels in an orderly and compact format, the dolly helps reduce the space occupied by a large touring inventory and makes equipment movement easier to manage.

One Coordinated System for Large Outdoor Events

YES TECH Mega Series combines the cabinet, central load-bearing structure, wind bracing, climbable air frame, universal beams, and touring dolly into a system designed around the full deployment process.
Its value is not limited to supporting a taller screen. It helps rental teams manage the structural, maintenance, and logistical demands that emerge as outdoor displays increase in scale. Mega is therefore the stronger choice when long hanging builds, outdoor stability, technician access, and touring efficiency matter more than creative cabinet mixing.

How Should You Choose Between YES TECH MU Series and Mega Series?

The choice should begin with the job the display must perform. Individual specifications are useful, but they should be evaluated as part of the complete installation, operation, maintenance, and transport plan.

Choose YES TECH MU Series If

Choose MU Series when the rental workflow involves frequent assembly and dismantling. It is also the more suitable option when single-person cabinet handling, mixed 500 x 500 mm and 500 x 1000 mm formats, or repeated screen reconfiguration are important.
MU Series should also be considered when the project requires curved, concave, convex, irregular, or multi-sided layouts. Front and rear maintenance provide additional flexibility when service access changes between venues. Compatibility with RUBIK, MG, and Xtra can further support a rental company that wants to use one inventory across different display systems.

Choose YES TECH Mega Series If

Choose Mega Series when the project requires a very tall suspended outdoor screen. Its central load-bearing construction and support for hanging heights up to 25 m address the needs of large-scale vertical builds.
Mega is also the stronger choice when reinforced wind bracing, stable hanging or stacking hardware, climbable maintenance access, and touring logistics are leading priorities. Its universal beams, folding air frame, and 12-panel dolly support repeated transportation and setup for major outdoor productions.

Frequently Asked Questions about YES TECH MU Series and Mega Series

1. Can MU and Mega Both Be Used for Outdoor Projects?

Yes. Mega is rated IP65, and selected MU outdoor configurations are also rated IP65. Selected MU outdoor configurations offer brightness up to 4000–4200 nits, while MEGA Series provides 5000-nit brightness.
The exact MU configuration must be checked because the MU Series includes different indoor and outdoor options. Outdoor suitability also depends on more than the cabinet’s protection rating. The complete installation should account for weather exposure, structural support, electrical protection, service access, and local safety requirements.

2. Which Series Is Better for Curved or Irregular Rental LED Screens?

YES TECH MU Series is the better choice for curved or irregular rental displays. It supports plus or minus 7.5-degree arc splicing, with an optional plus or minus 9-degree configuration. Cabinets can also be assembled upward or downward. Module interchange within the MU Series and compatibility with RUBIK, MG, and Xtra provide additional flexibility for mixed or evolving display systems.

3. Which Series Is Better for a Tall Hanging Outdoor Screen?

YES TECH Mega Series is the more suitable choice for a tall hanging outdoor screen. Its central load-bearing design supports hanging heights up to 25 m, while the reinforced wind-bracing system is designed to provide greater stability under wind pressure.
Mega also provides universal hanging beams, a climbable air frame, and touring equipment designed for repeated large outdoor installations. Final hanging height and wind requirements must still be confirmed through project-specific engineering and rigging calculations.

4. How Should a Rental Company Balance Pixel Pitch, Brightness, Cabinet Weight, and Transport Requirements?

Start with the expected viewing distance and content detail. A finer pixel pitch may be appropriate when viewers are closer to the screen or when the content requires more image detail. The pixel pitch should therefore be selected according to the audience position and screen size rather than considered separately.
Next, confirm the brightness and protection level required by the venue. Outdoor projects generally require greater brightness and environmental protection, but the final requirement depends on ambient light, exposure, operating time, and the installation environment.
Cabinet weight should be evaluated as part of the full system. The calculation needs to include cabinets, air frames, hanging or bottom beams, cables, and other structural components. Crew handling requirements and installation time should also be considered.
Finally, calculate how the equipment will move between venues. Panel count, dolly capacity, folded frame thickness, truck space, warehouse space, and stacking method all affect rental efficiency. MU may provide more value when flexible layouts and frequent reconfiguration are the main priorities. Mega may provide more value when structural support and touring efficiency for a large outdoor screen guide the decision.
