Is an Outdoor Transparent LED Display Always Better If Lighter?

Buyers of transparent LED displays start with visual performance — image quality and transparency. But their criteria no longer stop there. Installation convenience has become a serious purchasing consideration, and in high-frequency build scenarios such as stage rental and live events, how fast a display goes up shapes both project cost and the crew's experience on site. The industry usually frames installation convenience around quick-lock structures, modular design, and serviceability. A more basic property gets less attention but matters just as much: the weight of each cabinet.

A lighter cabinet has obvious, practical appeal. It is easier to move, faster to install, and less costly in labor. Those gains grow in the most demanding conditions — overhead rigging, or jobs that are assembled and taken down again and again. So, it is no surprise that weight has become something manufacturers compete on, each release advertising a lower figure than the last.

Does that make a transparent LED display better the lighter it gets? The honest answer is that weight alone settles very little. Two cabinets with the same weight per square meter can demand very different labor once a crew has to lift, align, and secure them on site. The relevant question for outdoor projects is therefore not which outdoor transparent LED display is lightest, but whether the weight race has addressed the operational pain points that drive installation cost and project risk.

What "Weight per Square Meter" Measures? And What It Omits?

Weight per square is defined simply: the net weight of a single panel divided by its display area. It is a density value and should be read as one.

Within its defined scope, the metric addresses a specific set of structural questions. Beyond that scope, it provides limited insight into the labor and handling processes that determine installed cost.

Two Recurring Misconceptions in Field Deployment of the Outdoor Transparent LED Display

Feedback from installation sites repeatedly identifies the same discrepancy between specification and execution on transparent LED screen. Two assumptions are responsible for the majority of it.

Misconception 1: A Lower Weight Value Indicates Reduced Installation Effort

Intuitively, a lighter panel should be easier to lift and position, which is why this reading dominates procurement discussions. On site, however, the effort a panel demands is shaped less by its mass than by two properties the weight figure does not capture: its volume and its center of gravity.

1. Volume and Lever Arm. A transparent LED screen maintains optical transparency by being thin and large-format, so a low single-piece weight can still be difficult to handle. The dimensions oblige the installer to extend the arms and hold the panel away from the body, lengthening the effective lever arm. As that lever arm grows, an identical mass becomes considerably harder to control.

Center of Gravity. The light bars, driver ICs, and power components are commonly concentrated along one edge or to a single side, producing uneven weight distribution. During handling, the panel tends to rotate toward its heavier side, requiring additional force to stabilize it.

The result: two panels of identical weight but differing volume and balance can impose markedly different handling demands, a distinction the density value does not convey.

Misconception 2: A Light Specification Indicates Single-Technician Installation

If a single panel is light enough for one person to lift, it is tempting to conclude that one person can install it. Lifting, however, is only part of the task. Whether a single technician can complete an installation depends on the assembly process itself, and on two factors the weight figure leaves unstated:

Assembly Logic, not Weight. Single-technician installation is determined by structural design and assembly logic. Low weight is a necessary but not sufficient condition. Even a genuinely light single piece still requires three concurrent actions, supporting the panel, aligning it to the adjacent unit, and securing the fasteners.

Tools and Space. Combined with tool dependency and the restricted working space typical of outdoor structures, these factors reduce the practical feasibility of single-person installation regardless of a favorable weight value.

This carries directly into project economics. For a transparent rental LED display installed and dismantled under compressed schedules with limited crews, the number of steps a single technician can complete unassisted is a principal determinant of labor hours and turnaround time.

3 Criteria to Evaluate the Outdoor Transparent LED Screen

Because neither assumption withstands field conditions, the relevant question is which parameters should be evaluated in place of the density figure. Experienced specifiers have responded accordingly, assessing a transparent LED screen against three operational criteria:

Per-piece handling weight and ergonomic suitability — the load a single technician manages in practice, accounting for format and balance rather than averaged density.

Assembly step count and tool requirement — the number of discrete actions and distinct tools required to progress from an unequipped support structure to a commissioned installation.

Single-point serviceability — the speed at which an individual faulty component can be replaced without disturbing adjacent units, a direct determinant of maintenance cost and downtime.

Considered together, these criteria define meaningful weight reduction for the outdoor projects. Genuine lightweighting is not the lowest value on a datasheet. Yet, it is a system that a field crew can transport, align, secure, and subsequently service with predictable labor. Weight constitutes one variable within this assessment rather than its conclusion.

The Design of the Outdoor Transparent LED Screen from YES TECH

As an experienced transparent LED screen manufacturer, YES TECH did not pursue the lowest weight value on a specification table but sought to render the product convenient and controllable to deploy and maintain.

That objective redefined the unit of optimization: the MT II is not refined at the level of the individual module, but upgraded as a complete MT framework, in which structural strength, transparency, weight, and operational convenience are engineered as a unified system rather than as competing trade-offs.

This principle is expressed across two layers:

Structure: A dual-frame design reinforces overall structural strength while further improving transparency. The introduction of magnesium alloy combines reduced weight with high structural strength, keeping the panel light without compromising rigidity.

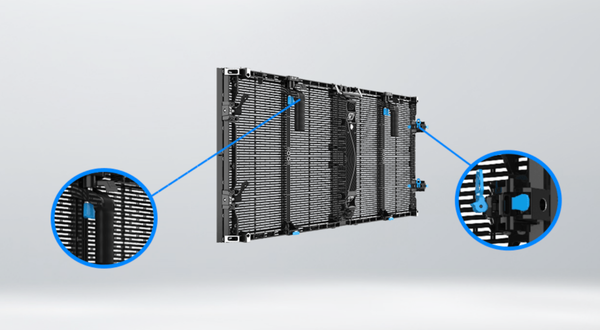

Operation: Quick-release locks, widened handles, and convenient transparency switching render single-technician installation and maintenance practicable, addressing the concurrent handling, alignment, and fastening requirements at the hardware level rather than transferring them to the crew.

For an outdoor transparent LED display subject to schedule and labor constraints, this distinction corresponds directly to deployment efficiency and total installed cost.

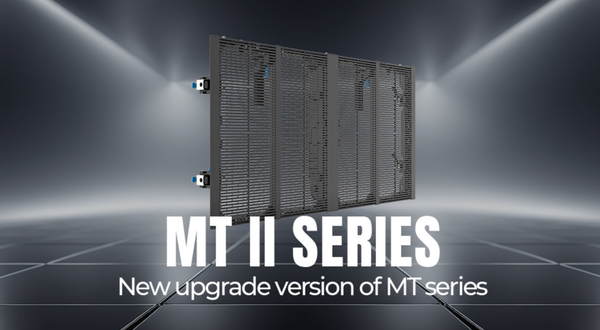

Upgrades over the Previous MT, the Last Gen. of Transparent LED Screen

Building on the original MT Series framework, the MT II can deliver measurable improvements across four areas:

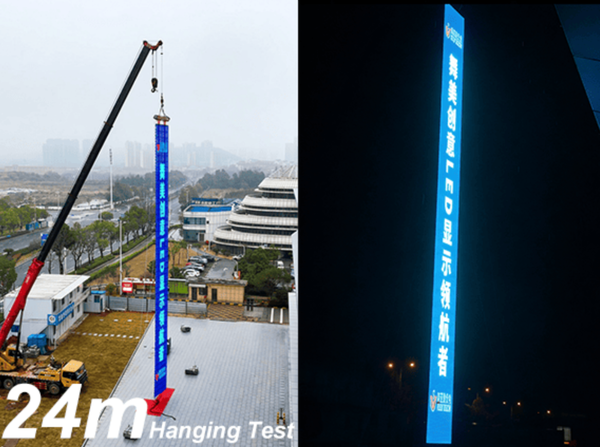

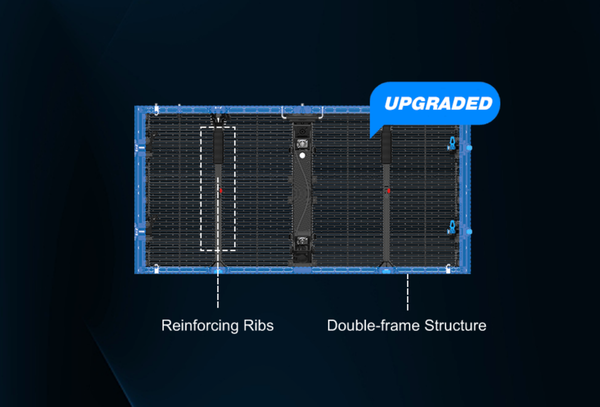

Load-Bearing Capacity and Hoisting Height: Internal reinforcing ribs within the hollow dual-frame increase load-bearing capacity while preserving transparency, supporting stable hoisting up to 20 m and validated to 24 m in testing.

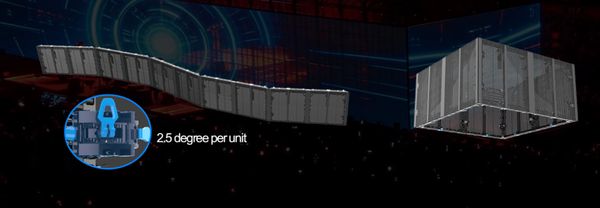

Form-Factor Versatility: The MT II retains both right-angle and curved splicing, inner and outer 90° joints for square-column configurations, high-precision 15° inner and outer arcs for curved surfaces, and half-cabinet staggered splicing, so creative geometry is not constrained by the structure.

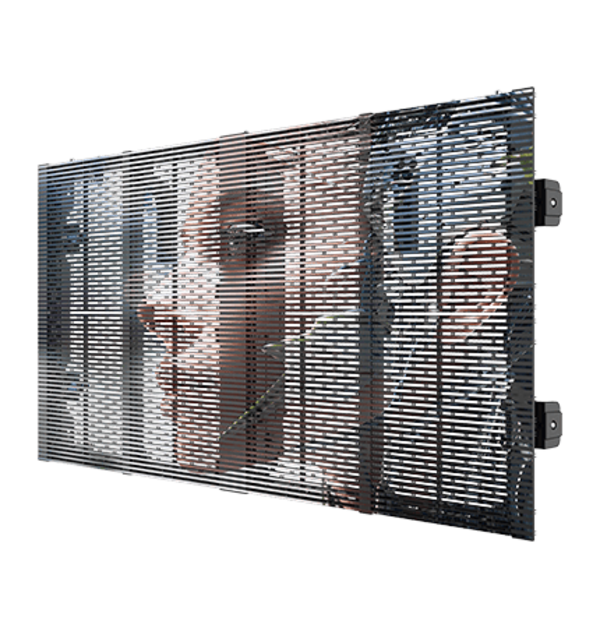

Visual Performance: Transparency reaches 50% or higher, and the refresh rate extends to 7680 Hz. An optimized lamp-board and IC layout maintains consistent color and balances transparency against image quality, meeting the requirements of high-standard stage and scenographic display.

Installation Flexibility: Top-beam and bottom-beam mounting are interchangeable, which reduces procurement and maintenance costs and improves assembly and disassembly efficiency.

Conclusion

A lighter, transparent LED display is not necessarily a superior one. Weight per square meter records a single specification value; it does not account for the labor required to move, align, and service the screen on site, and that labor is the principal driver of total installed cost.

The YES TECH MT II is engineered to this standard. Rather than minimizing weight in isolation, YES TECH integrates transparency, structural strength, and operational efficiency into a single balanced system — delivering performance that holds not only on the specification sheet but throughout the full deployment and service cycle.
